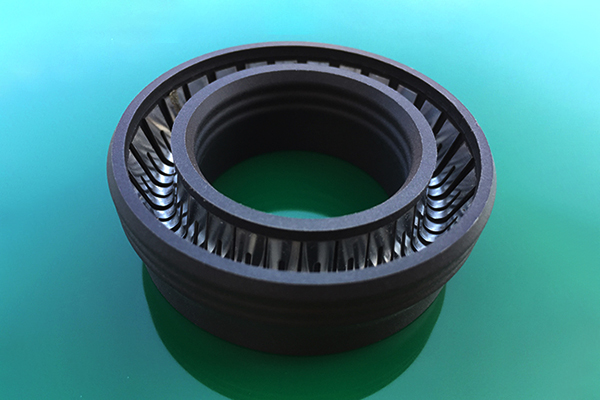

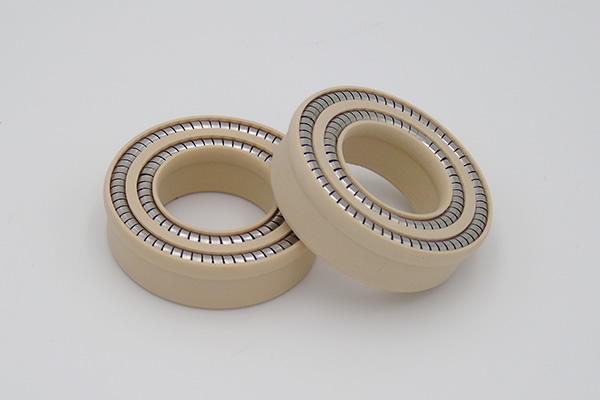

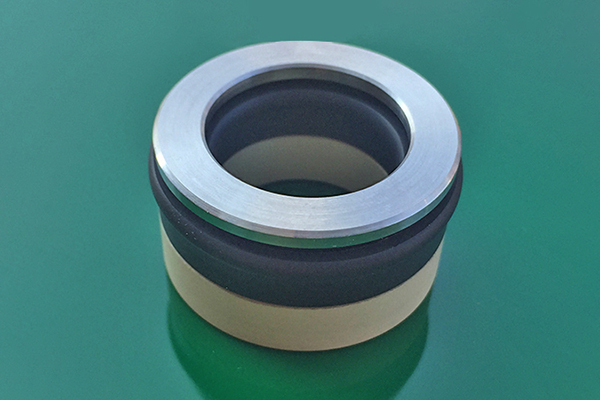

石油密封圈
| 閥桿密封尺寸規格表 | ||||||
| 壓力等級psi | 英制尺寸( inch) | 公制尺寸( mm) | ||||
| 閥桿直徑( d) | 溝槽外徑(D) | 產品高度(H) | 閥桿直徑( d) | 溝槽外徑(D) | 產品高度(H) | |
| 3K/5K/10K/15K | 1.00 | 1.75 | 0.71 | 25.40 | 44.45 | 18.00 |
| 3K/5K/10K | 1.00 | 1.79 | 25.40 | 45.40 | ||
| 5K/10K/15K | 1.25 | 2.00 | 31.75 | 50.80 | ||
| 5K/10K/15K | 1.25 | 2.04 | 31.75 | 51.80 | ||
| 5K/10K/15K | 1.50 | 2.29 | 38.10 | 58.10 | ||
| 5K/10K | 1.61 | 2.38 | 41.00 | 60.50 | ||
| 15K/20K | 1.75 | 2.50 | 44.45 | 63.58 | ||
| 5K/10K | 2.00 | 2.79 | 50.80 | 70.80 | ||
| 10K | 0.20 | 3.00 | 5.08 | 76.15 | ||
